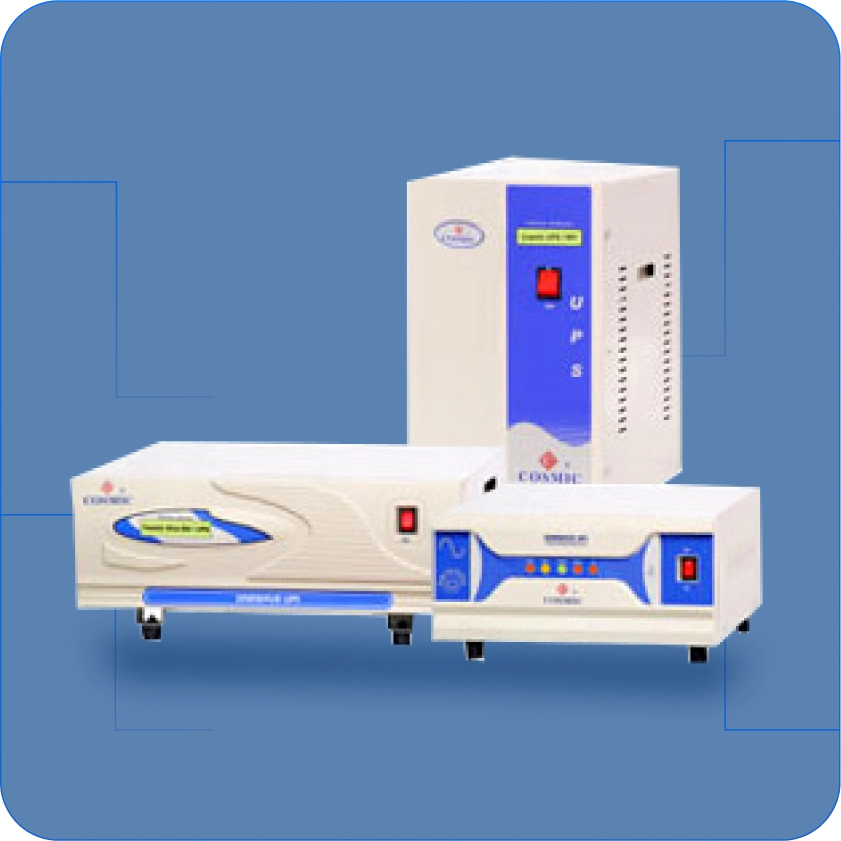

Cosmic® Sine Wave UPS
Cosmic® Sine Wave UPS
Cosmic Sine Wave UPS is an extraordinary product, which is the perfect solution for power failure. It provides continuous quality and clean power supply during your precious time by adding the value for the tasks you performed.
Features
- Pure sine wave output for safe and reliable operation of sensitive electronic equipment
- Advanced DSP based PWM technology for high efficiency and reliability
- Dual purpose inverter/UPS for versatility
- Noiseless operation
- Cold and soft start operation
- Low voltage protection
Description
Online UPS – Advanced Power Backup Solution for Homes, Offices & Industries
Cosmic® Online UPS systems use double conversion technology to provide the highest level of protection for your critical equipment. Double conversion technology means that the incoming AC power is first converted to DC power, and then the DC power is converted back to AC power. This process ensures that your equipment receives clean, stable power, even in the event of a power outage. Cosmic® UPS systems are available in a wide range of capacities, from 5 KVA to 250 KVA, and can be configured for single-phase or three-phase input and output.
Specification
| Technology | DSP Based PWM MOSFET / IGBT |
|---|---|
| Capacity | 600VA to 15KVA |
| Input voltage |
175V – 265V AC for computer, 100V – 300V AC for lighting |
| Transfer time | < 3ms |
| Waveform | Pure Sine Wave |
| Frequency | 50Hz +- 1% (on Battery mode) |
| Efficiency | >90% |
| Output Voltage | 225V +- 1% (on Battery mode) |
| Power factory | 0.8 lag |
| Charger | DSP Based PWM SMPS |
| Short Circuit Protection | >300% load (short circuit with Manual Reset Function) |
| Indication / LCD Display | Main On, Charger On Inv On, Batt Low, Overload |
| Alarms | Batter Low, Over Lord, Mains Failure, Short Circuit |
| Protection |
Mains High and Low Voltage, Short Circuit, Battery deep discharge and over charge |
| Type of cooling | Forced Air Cooling |
| Noise level | Less than 60db |
| Crest factory | Upto 3:1 |
| Withstanding capacity | 125% Up to 60 Seconds |
| Recharging time | 6 Hours – 8 Hours |
| Battery voltage range | 12V to 240V DC |
Frequently Ask Question Now.
Why is a sine wave UPS important?
Sine wave UPSs are important because they provide clean, uninterrupted power to your devices, even during power outages. This helps to protect your devices from damage and ensures that they continue to operate properly.
What are the benefits of using Cosmic® sine wave UPS?
Cosmic® sine wave UPSs are known for their high quality, reliability, and efficiency. They offer a number of benefits, including:
- Pure sine wave output for safe and reliable operation of sensitive electronic equipment
- Advanced DSP based PWM technology for high efficiency and reliability
- Dual purpose inverter/UPS for versatility
- Noiseless operation
- Green mode to save power in no load conditions
- Cold and soft start operation to protect the load
- Input high and low voltage protection
What are the applications for Cosmic® sine wave UPS?
Cosmic® sine wave UPSs can be used for a wide variety of applications, including:
- Computers and servers
- Networking equipment
- Medical equipment
- Industrial equipment
- Home entertainment systems
- Security systems And more!
What is the capacity of Cosmic® sine wave UPS?
Cosmic® sine wave UPSs are available in a variety of capacities, ranging from 600VA to 15KVA.
What is the transfer time of Cosmic® sine wave UPS?
Cosmic® sine wave UPSs have a transfer time of less than 3ms. This means that your devices will continue to receive power even during a brief power outage.
